The HTBL MO / HTBL W is a bottom loading furnace system that is based on metallic insulation and heating elements.
The metallic furnaces are offered with a volume of 60 litres. The HTBL 60 MO/16-1G has a maximum temperature of 1600 °C and uses molybdenum radiation shields and heating elements. The HTBL 60 W/22-1G has a maximum temperature of 2200 °C and uses tungsten radiation shields and heating elements. The metallic versions of the HTBL are suited for generating the purest atmospheres and the best working vacuum level.
One clear advantage is the easy loading and unloading of the HTBL type furnaces. Once the hearth has been lowered, the sample is accessible from all sides without limitations. Sample loading is extremely easy and user-friendly, especially with delicate samples. Additionally, sample thermocouples can placed at specified locations within the chamber. A retort may also be used with the HTBL. The movement of the loading area is fully automated and driven by a hydraulic arm. Once the loading area has reached the lowest position, the user can manually rotate the loading platform outward by 90 °.
Nitrogen, Argon, and Hydrogen gases are available for use as either pure or mixed gas. Other gases may be installed upon request. A slight overpressure or controlled partial pressure, to establish a defined gas flow, can be used in the furnace. Operation with air is not possible.
Various dosing and controlling devices control all gases. Depending on the vacuum requirements, vacuum pumps are configured specifically for the application or as requested. The temperature is independently controlled to achieve the best uniformity.
Toepassingsvoorbeelden
gloeien, solderen, carbonisatie, keramisch injectie vormgieten (CIM), ontbinden, ontgassen, drogen, verharding, metaal injectie vormgieten (MIM), pyrolyse, Quenching, rapid prototyping, siliconisering, sinteren, soldering, sublimering, synthese, temperen
Standaard functies
- Metallic furnaces provide precisely defined atmospheres with the highest possible purity (6 N or better)
- Hydrogen partial pressure operation upon request
- Precisely controlled vacuum pumping speeds appropriate for use with powders
- Fully automatic operation
- Data registratie voor kwaliteitsbeheer
Oven met bodemlader, metalen isolatie - HTBL MO/W Bekijk de binnenkant van de HTBL hoge temperatuur oven

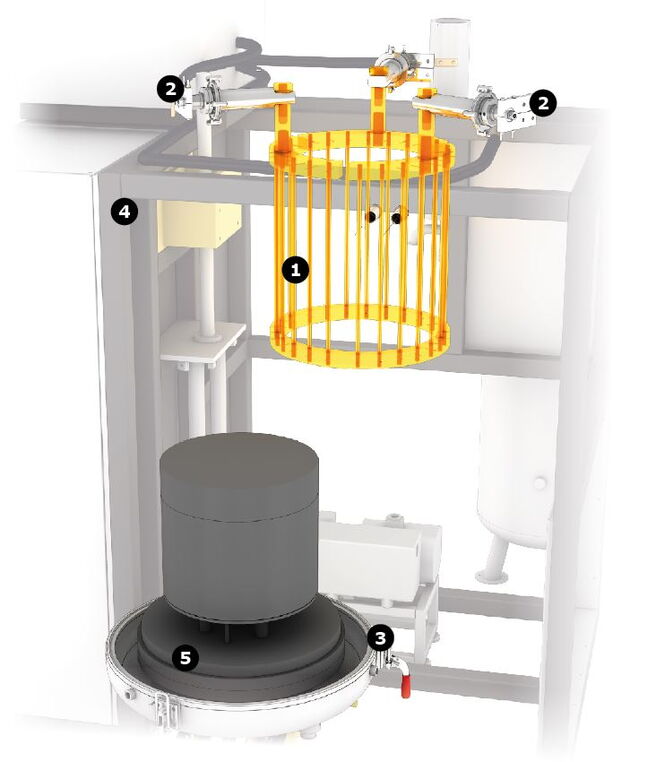

- Heating elements
- Water cooled current
- Bottom locking device
- Frame
- Bottom plate
All HTBL models are equipped with fully automated software and reliable data logging for later evaluation of the process. All process data are measured and logged at predefined intervals. Automated control and high volume units are especially suited for industrial applications and large scale production.

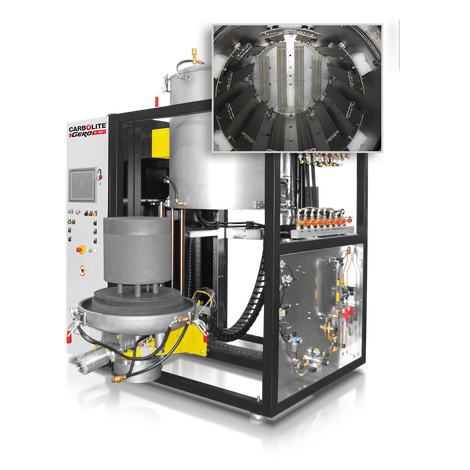

View inside HTBL
Oven met bodemlader, metalen isolatie - HTBL MO/W Technische Gegevens
| Insulation material | Afmetingen: Buiten H x B x D (mm) | Transport weight (kg) | Usable space | Volume (liter) | Ø x H, usable space without retort (mm) | Ø x H, usable space with retort (mm) | Thermal values | Tmax vacuum (°C) | Tmax atmospheric pressure (°C) | -Delta-T, between 500°C and 2200°C (K) according to DIN 17052 | Max. heat-up rate (K/min) | Cooling time (h) | Connecting values | Vermogen (kW) | Voltage (V) | Current (A) | Series fuse (A) | Vacuum (option) | Leakage rate - clean, cold and empty (mbar l/s) | Vacuum range depending on the pumping unit | Cooling water required | Flow (l/min) | Gas supply | Nitrogen or Argon flow, others on request (l/h) | Controller | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HTBL 60 MO/16-1G | Molybdenum | 3300 x 2400 x 2200 | 3400 | |
60 | 400 x 500 | 380 x 480 | |
1600 | 1600 | ± 10 | 10 | 5 | |
80 | 400 (3P) | 3 x 115 | 3 x 160 | |
< 5x10-3 | rough, fine, high or ultra high vacuum | |
64 | |
500-2000 | Siemens |
| HTBL 60 W/16-1G | Tungsten | 3300 x 2400 x 2200 | 3600 | |
60 | 400 x 500 | 380 x 480 | |
2200 | 2200 | ± 10 | 10 | 6 | |
250 | 400 (3P) | 3 x 360 | 3 x 500 | |
< 5x10-3 | rough, fine, high or ultra high vacuum | |
200 | |
500-2000 | Siemens |
Oven met bodemlader, metalen isolatie - HTBL MO/W Downloads

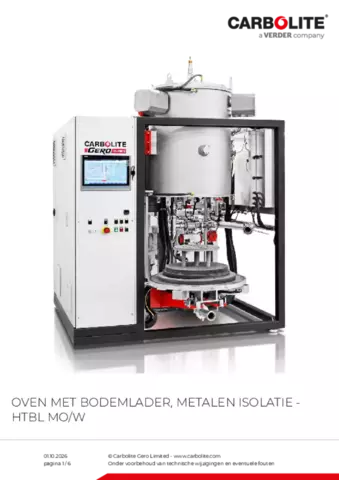

Productinformatieblad HTBL
Heat treatment at low pressures
High temperature vacuum furnaces are used for heat treatment of samples at low pressure (down to 10-6 mbar) and under partial gas atmospheres. In the bottom loader version the bottom is lowered and driven out of the furnace. It then pivots forward to permit easy loading. This design makes the useable volume accessible from all sides and allows for exact placement of the sample thermocouples which measure the temperature of the sample.
