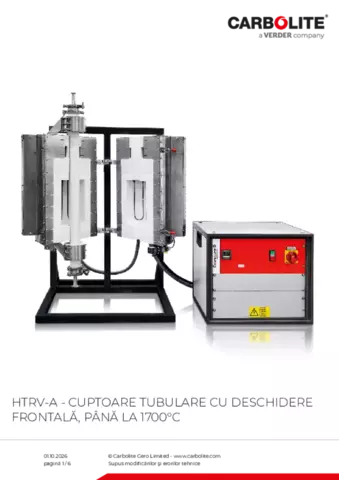

HTRV-A - Cuptoare tubulare cu deschidere frontală, până la 1700°C

The HTRV-A split tube furnaces have a maximum operating temperature of 1700 °C.

The split heating module allows either easy positioning of the work tube or positioning around reactors which have fixed end flanges. The split design may also allow faster cooling of samples. The control thermocouple is fitted in the centre of the heating zone. Cooling channels are engineered into the housing to aid with convection cooling of the outer case.

The two furnace chamber halves consist of high grade insulation plates with vertically hanging MoSi₂ heating elements. A safety switch protects the operator by switching off the heating elements once the furnace is opened.

The tube furnace is supplied without a stand, allowing customers to build them into their own equipment. Optional ‘L’ stands are available allowing the furnaces to be self supporting.

recoacere, carbonizare, creştere cristale, descompunere, degazificare, deshidratare, călire, metal injection moulding (MIM), pyrolyses, rapid prototyping, sintering, sublimation, sinteză, maleabilizare

• 1600 and 1700 °C maximum operating temperatures
• Sistem de control programabil, model EPC3016P1
• Protecție la supra-încălzire
• Designed for vertical use
• Accepts work tubes with outer diameters up to 100 mm for use with modified atmosphere
• Heated lengths of 120, 250, 500 or 700 mm
• High grade type B thermocouple
• Low thermal mass ceramic fibre insulation
• Vertically hanging high quality MoSi2 heating elements
• Supplied with separate control box and 3 m cable, plug and socket
• Conexiune Ethernet

• Gamă de sisteme de control digitale sofisticate, fiind diponibile opțional programe cu segmente multiple și înregistrare de date cu opțiune de transmitere digitală - mai multe înformații despre sistemele de control disponibile
• A range of additional work tubes is available in a variety of materials
• prize de izolație și protecții de radiație sunt recomandate pentru a preveni pierderea de căldură și a îmbunătăți uniformitatea (sunt esențiale pentru funcționare verticală)
• ansamblele de vidare şi atmosferă modificată sunt disponibile - Mai multe informaţii
• Vacuum packages with a choice of rotary vane pump or turbomolecular pump are available
• Longer heated lengths
• 'L' stand for convenient usage
• Oxygen sensor for inert gas packages
• 6 m long cable between furnace body and control box with plug and socket
