The unique feature of the LHT high temperature laboratory furnace series is a compact design, making it the perfect tool for laboratories in research and development environments.
The cylindrical usable space of the laboratory furnace is surrounded by the heating elements and insulation material. The heated chamber is integrated into the water cooled vessel. As a result of the small volume, the LHT is ideal for small samples and requires minimal operating space.
The system is supported by a single frame platform which supports the furnace and electronic cabinet containing the software controls. Casters are attached to the supporting platform, which allows the whole system to move easily. For universities and industrial research laboratories, the LHT series is a perfect fit for such operating areas.
The small overall dimensions and simple operation result in a cost effective system without any performance loss in temperature uniformity or atmospheric quality. Additionally, the cylindrical design is best suited for overpressure heat treatment processes. Upon request, the system can be equipped with a suitable locking device and all necessary equipment for safe overpressure operations up to 100 bar.
The LHTG has heating elements and insulation material made from graphite. Graphite based LHT models are temperature controlled by pyrometers. An over-temperature thermocouple can be added as an option, which is highly recommended for unattended operation. Under Argon environment, the maximum temperature is 3000 °C, which requires the use of a pyrometer to measure the chamber temperature. The pyrometer is combined with the use of a sliding thermocouple to measure temperatures at the beginning of the process as the initial temperatures are not high enough to be detected by the pyrometer.
Exemple de Aplicații
brazing, carbonizare, descompunere, degazificare, deshidratare, metal injection moulding (MIM), pyrolysis, rapid prototyping, siliconization, sintering, sinteză, maleabilizare
Caracteristici standard
- Compact design suited for laboratories
- Best possible vacuum
- Vacuum level < 5 x 10-6 mbar
- Partial pressure 10 - 1000 mbar
- Overpressure operation up to 100 bar possible
- High temperature top loader up to 3000 °C with Graphite
- Hydrogen partial pressure operation on demand
- Precisely controlled vacuum pumping speeds appropriate for use with powders
- Data recording for quality management
LHT GR - Cuptor de laborator, izolație din grafit Vedere a interiorului cuptorului de laborator LHT
- Water cooled vessel
- Heating elements
- Top cover, manually operated
- Thermocouple
- Radiation shields at the top
- Radiation shields at the mantle
- Short circuit ring
The LHTG is based on graphite heating elements and insulation material. If the highest temperature of 3000 °C is required, the insulation thickness and the graphite insulation layers must be specifically designed to withstand the extreme temperatures. The installed power must also be adapted to reach 3000 °C with a high heating rate. The heating cassette is surrounded by a water cooled vessel. The furnace is equipped with all necessary flanges, thermocouples, electrical connections and the pyrometer. The vessel is double walled and water cooled for safety. Electrical connections and electrical cables are water cooled as well.
Software operation is available with manual or automated controls. For the manual version, all valves and pumps are operated by simple push buttons at the user panel with a rotameter used to adjust gas flow. The automated software is operated via a touch panel interface. Mass flow controllers are used to regulate the gas flow. Data logging is possible for both manual and automated operation.
View inside LHTG
LHT GR - Cuptor de laborator, izolație din grafit Date tehnice
| Insulation material | Dimensiuni: Externe H x W x D (mm) | Transport weight (kg) | Usable space | Volum (l) | Ø x H, usable space without retort (mm) | Ø x H, usable space with retort (mm) | Thermal values | Tmax vacuum (°C) | Tmax atmospheric pressure (°C) | -Delta-T, between 500°C and 2200°C (K) according to DIN 17052 | Max. heat-up rate (K/min) | Cooling time (h) | Connecting values | Putere (kW) | Voltage (V) | Current (A) | Series fuse (A) | Vacuum (option) | Leakage rate - clean, cold and empty (mbar l/s) | Vacuum range depending on the pumping unit | Cooling water required | Flow (l/min) | Max. inlet temperature (°C) | Gas supply | Nitrogen or Argon flow, others on request (l/h) | Controller | Manual operation | Automatic operation | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LHTG 100-200/22-1G | Graphite | 1800 x 1900 x 1000 | 780 | |
1.5 | 100 x 200 | 90 x 200 | |
2200 | 2200 | ± 10 | 10 | 4 | |
22 | 400 (3P) | 3 x 55 | 3 x 63 | |
< 5x10-3 | rough or fine vacuum | |
20 | 23 | |
50-500 | |
TP1200 touch panel | TP1900 touch panel, Siemens S7-1500 PLC |
| LHTG 100-200/30-1G | Graphite | 1800 x 1900 x 1000 | 1000 | |
1.5 | 100 x 200 | 90 x 200 | |
2200 | 3000 | ± 10 | 20 | 5 | |
40 | 400 (3P) | 3 x 100 | 3 x 125 | |
< 5x10-3 | rough or fine vacuum | |
30 | 23 | |
50-500 | |
TP1200 touch panel | TP1900 touch panel, Siemens S7-1500 PLC |
| LHTG 200-300/22-1G | Graphite | 1800 x 1900 x 1000 | 900 | |
10 | 200 x 300 | 180 x 300 | |
2200 | 2200 | ± 10 | 10 | 5 | |
45 | 400 (3P) | 3 x 65 | 3 x 80 | |
< 5x10-3 | rough or fine vacuum | |
50 | 23 | |
50-500 | |
TP1200 touch panel | TP1900 touch panel, Siemens S7-1500 PLC |
| LHTG 200-300/30-1G | Graphite | 1800 x 1900 x 1000 | 1500 | |
10 | 200 x 300 | 180 x 300 | |
2200 | 3000 | ± 10 | 20 | 7 | |
85 | 400 (3P) | 3 x 120 | 3 x 160 | |
< 5x10-3 | rough or fine vacuum | |
75 | 23 | |
50-500 | |
TP1200 touch panel | TP1900 touch panel, Siemens S7-1500 PLC |

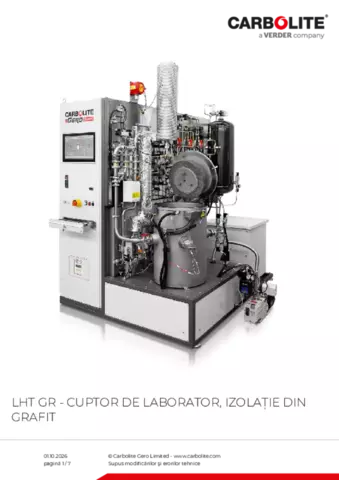

LHT GR - Cuptor de laborator, izolație din grafit Descărcări
