The AriesPlus touch screen controllers offer programmable control in which 99 segments may be set as ramp, step or dwell and may also be configured to control relays.

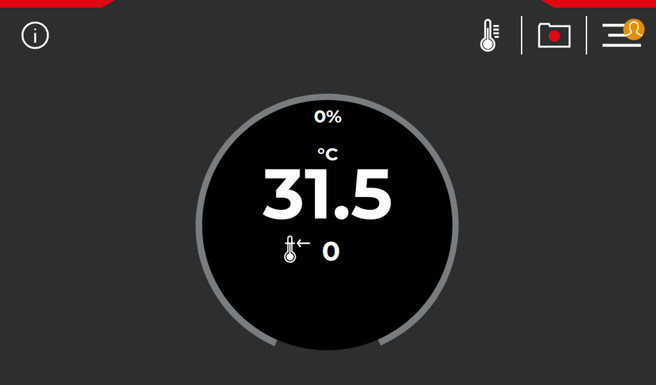

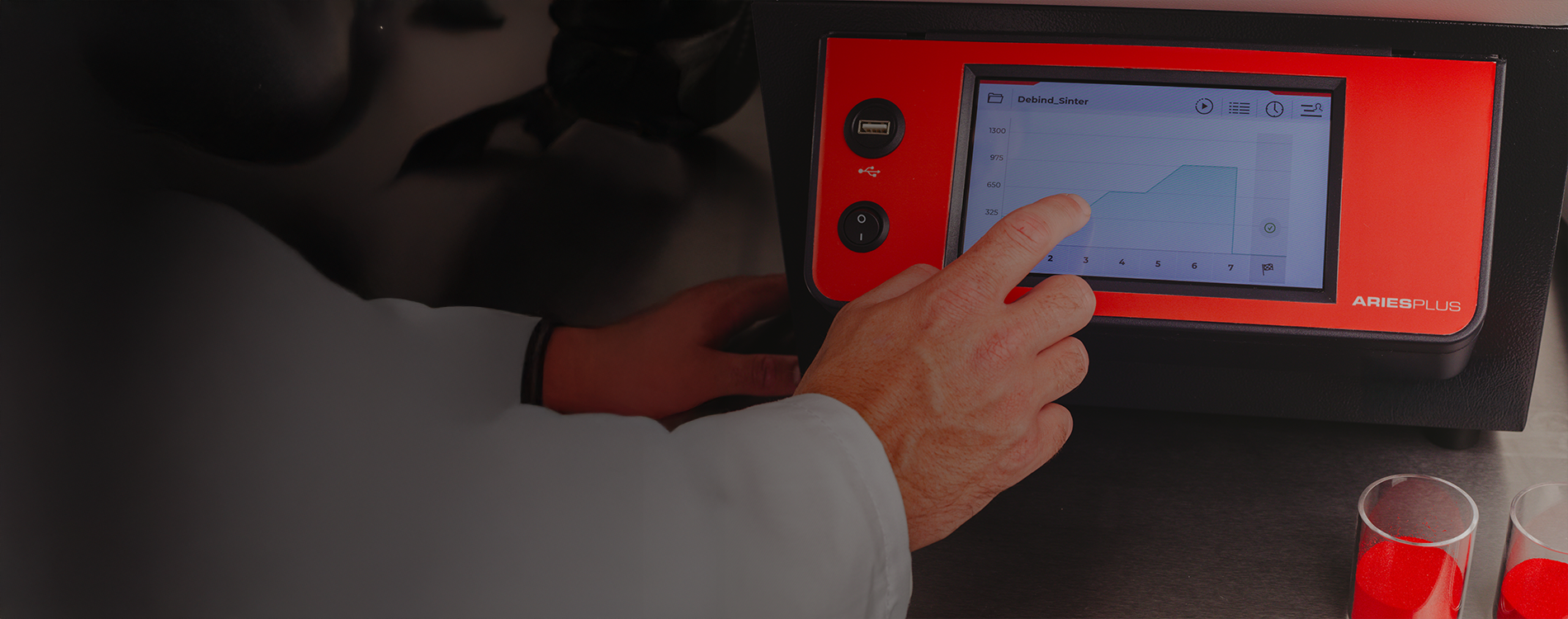

The AriesPlus series provides a capacitive touch screen interface giving intuitive access to a comprehensive menu for selection and editing of program profiles; scheduling of programs at a defined day and time; data logging of setpoint and actual temperature; localization of language; user level security.
The AriesPlus series can also store and retrieve 50 unique program profiles. Data-logging is to internal memory which can be downloaded to the adjacent USB port or downloaded to a PC if connected on a network. Ethernet connectivity is fitted as a standard feature.
User level functionality Standard features
- 7.0’’ colour capacitive touch screen
- 50 programmes with 99 segments

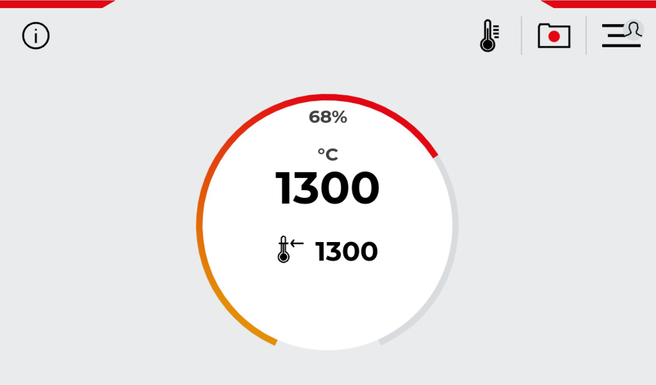

- Live process graph display

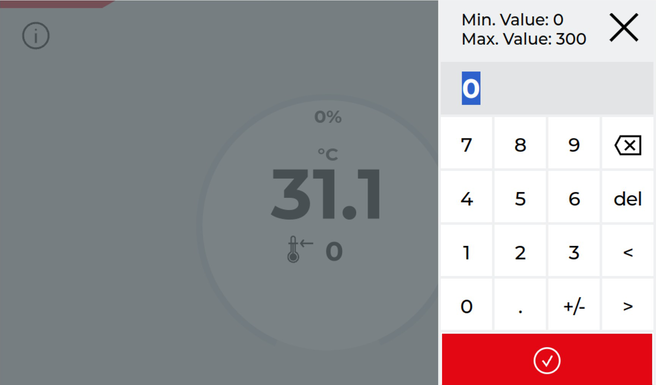

- Setpoint & program profile control
- Data logging to internal memory
- 7-day time scheduler
- Ethernet connectivity
- Remote connection via a browser
- Panel mounted USB socket
- User level security
- Settings including 9 languages
Control pe o singură zonă cu protecție a procesului
Program segment events
- Program segment events activate options like switching gas flows or starting a cooling fan.
Alarm activation
- Alarm options enable door locking and process accuracy monitoring.

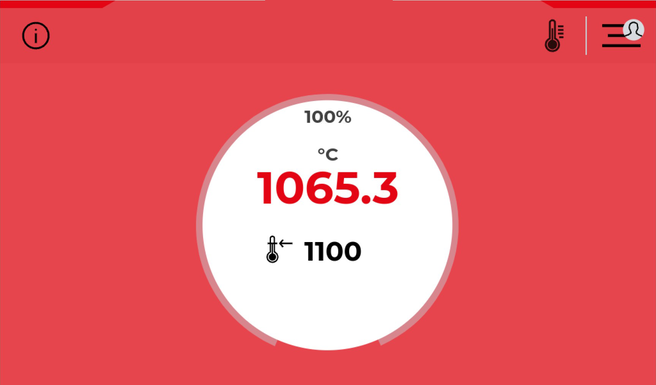

Over-temperature control
- Integrated independent over-temperature protection with clear alarm indication; recommended for unattended operation and valuable load protection.
Remote network connection
Connect to the AriesPlus controller using any computer browser (no software installation necessary).
- Remote viewing
- Login and navigate
- Create and edit programs
- Data-Logging download to PC
AriesPlus Features ThermoTune
Carbolite is proud to announce the launch of our latest innovation, the AriesPlus temperature controller, featuring the revolutionary ThermoTune . ThermoTune is designed to provide exceptional control across a wide temperature range, ensuring precision and reliability for all your thermal processing needs.
With THERMOTUNE you can expect
Enhanced Control
THERMOTUNE is purpose-built for Carbolite products, delivering precise temperature regulation across a broad range. Count on smooth, efficient operation that keeps your processes on track.
Optimized Performance

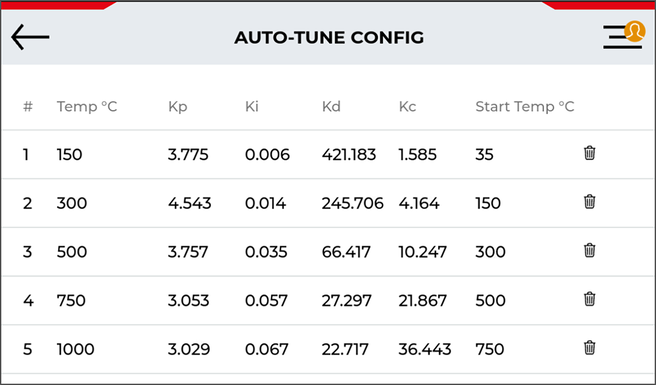

While traditional controllers are limited to one or two PID settings, THERMOTUNE features finely tuned PID terms for multiple temperature points. Its advanced algorithms, specifically developed for Carbolite systems, offer outstanding accuracy and reliability.
Unmatched Versatility
THERMOTUNE’s adaptive control ensures seamless transitions and consistent results, even as process conditions change. Its flexibility makes it the perfect solution for applications demanding precise, reliable temperature management—no matter the challenge.

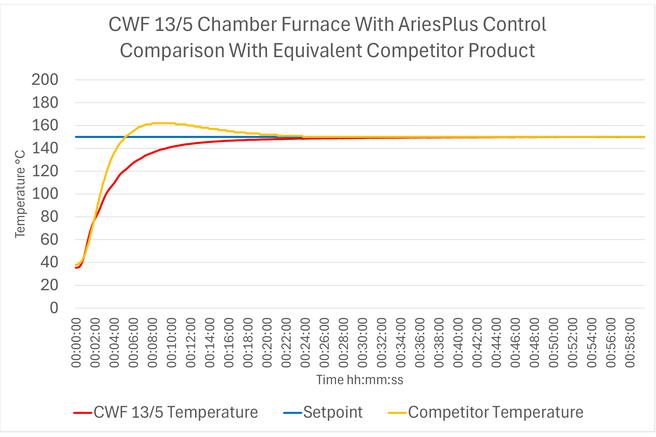

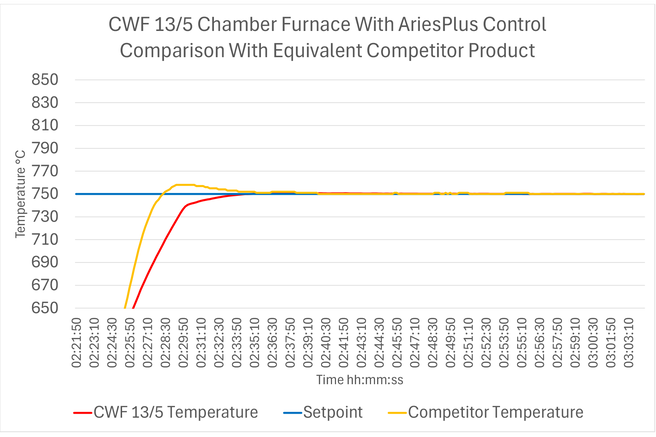

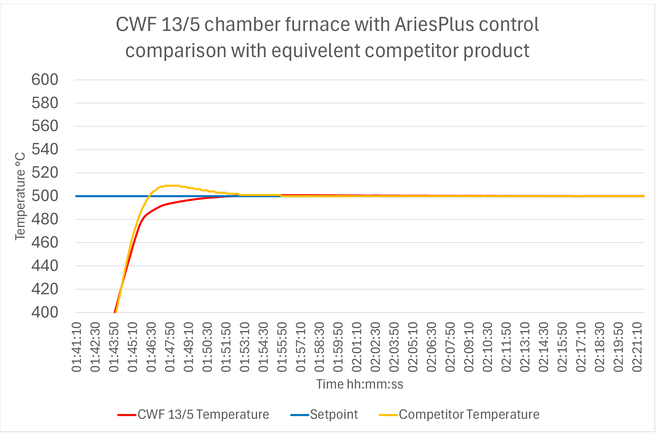

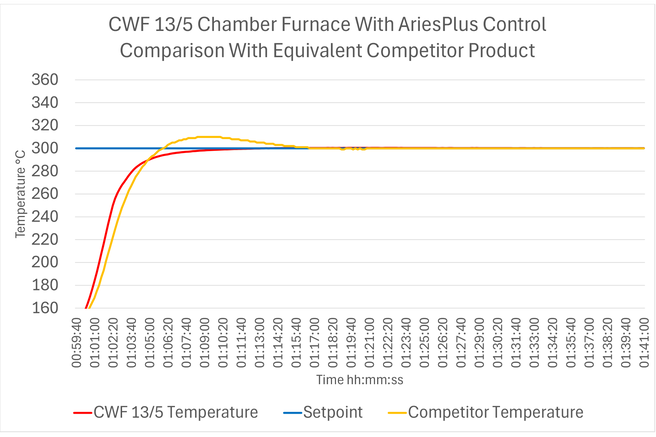

Сompetitor Comparison
The AriesPlus temperature controller with advanced THERMOTUNE for exceptional precision. As shown in the charts, AriesPlus outperforms leading competitors, delivering superior control and excellent temperature stability. Discover the difference that AriesPlus can make for your laboratory or industrial heating applications.
The NEW temperature controller Ariesplus Control with precision

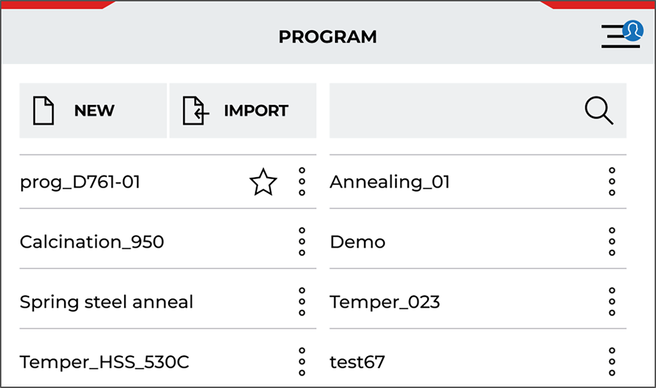

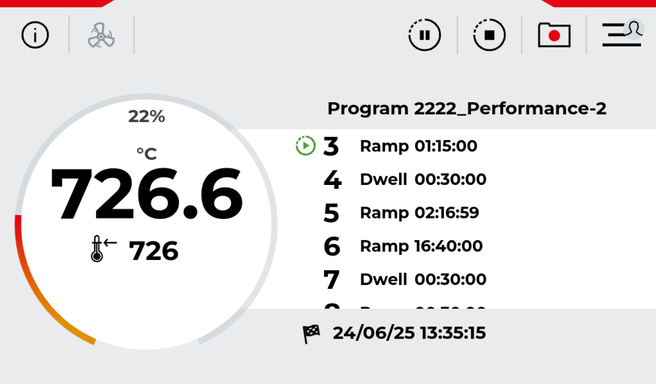

Programming
Manage up to 50 programs with USB/PC import/export; features include duplicate, rename, favorite, and delete.

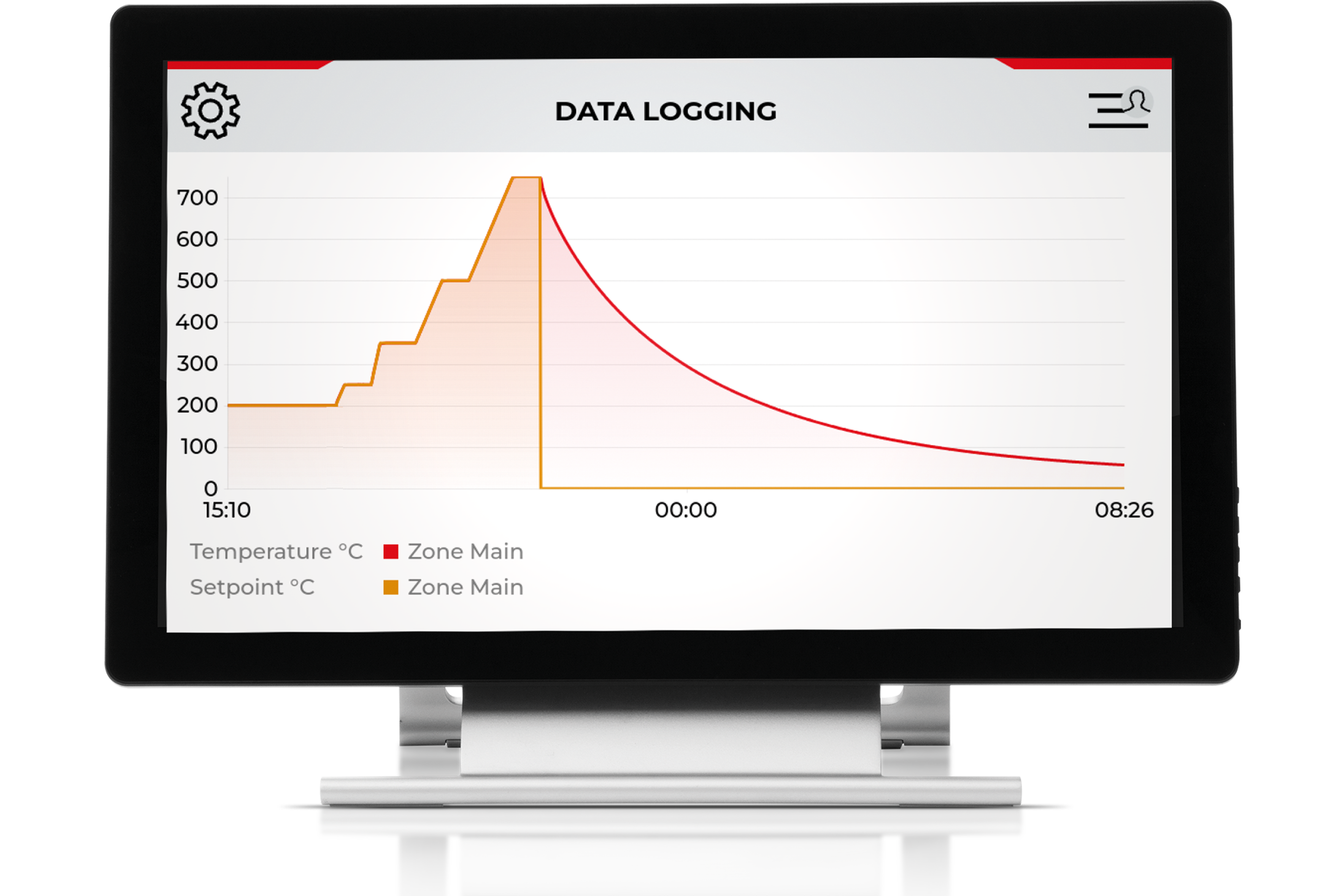

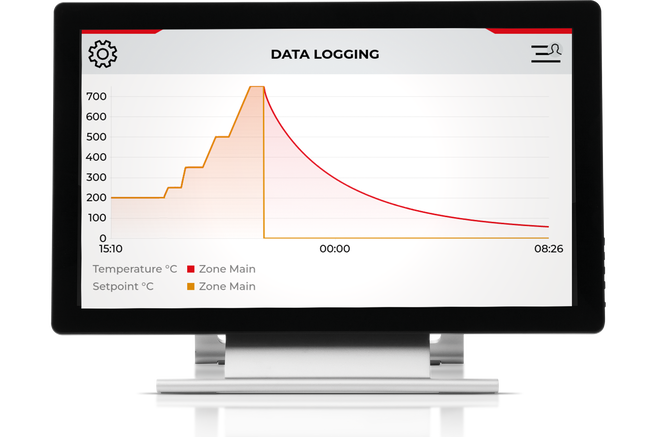

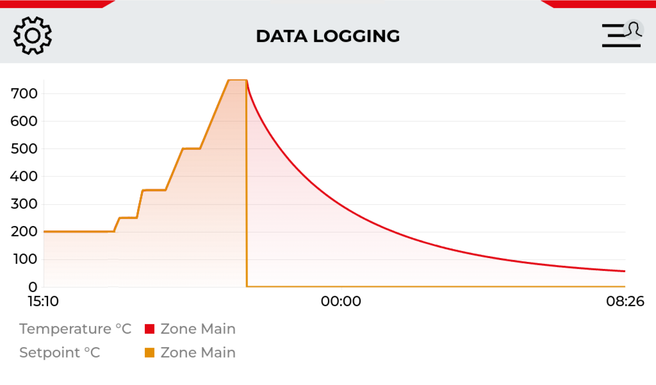

Data Logging
Set logging rate from 10 seconds; features batch ID and auto-logging on program start.
View live process graphs for up to 48 hours with pinch zoom; download by batch or date/time range.

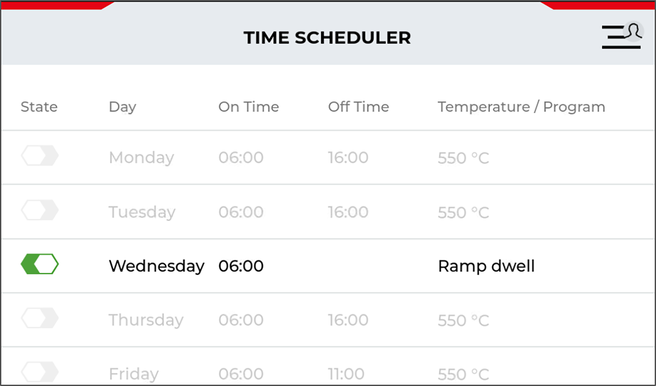

7 Day time scheduler
Schedule daily heating or program runs at specified times.
Autotune
Optimize for accurate operation across all temperatures; retune for specific processes.

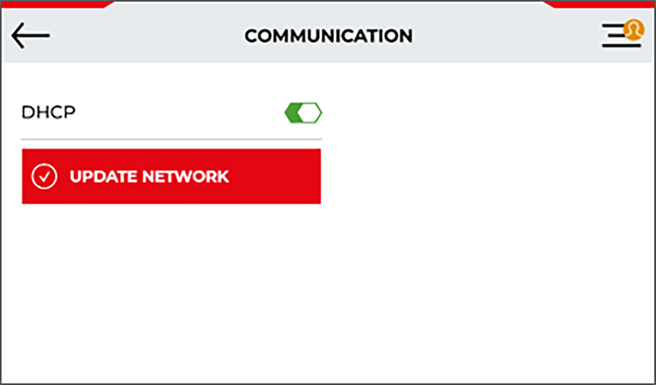

Remote network connection
Ethernet-ready with DHCP or manual connection options.

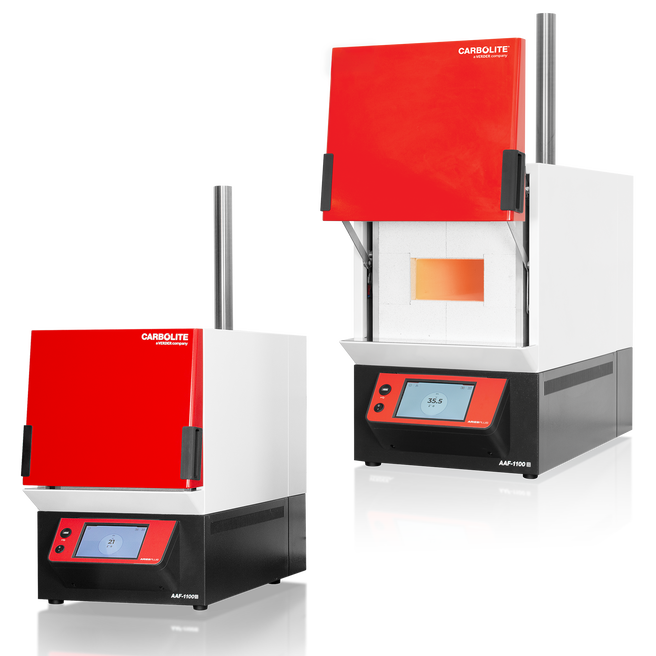

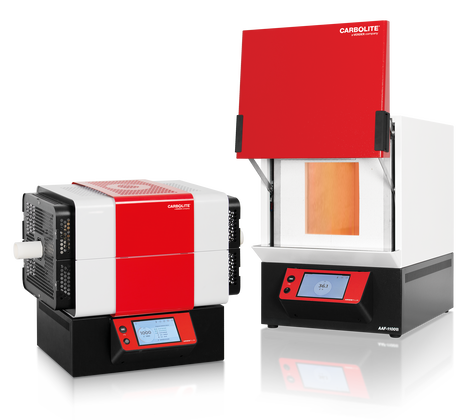

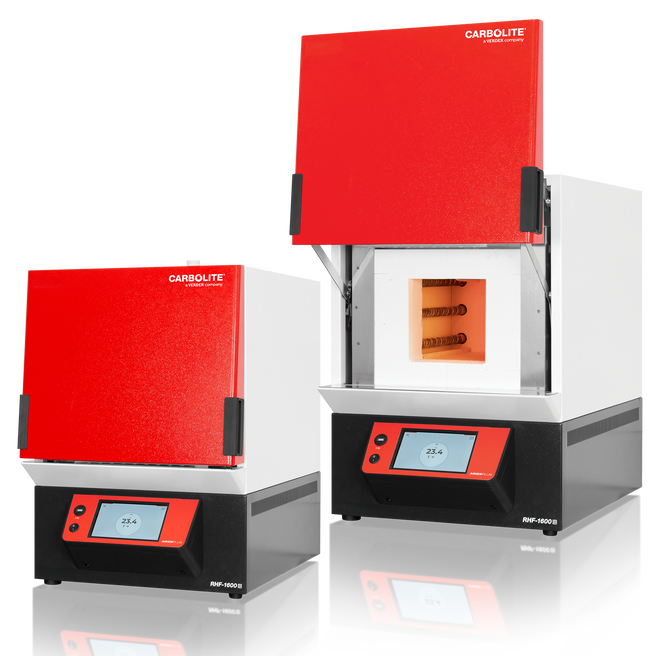

Cuptoare disponibile cu AriesPlus
