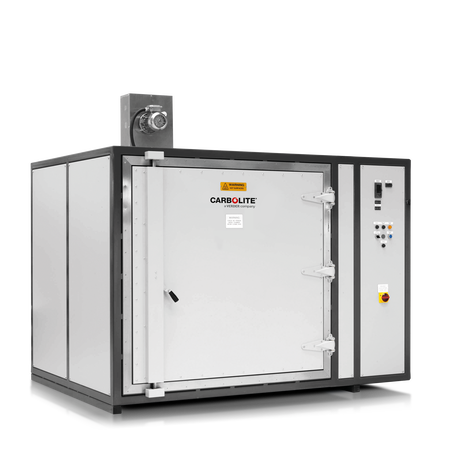

The LGP large general purpose ovens offer the greatest choice of options in size and maximum temperature. The range spans from 500 to more than 13,000 litres, with a temperature span from 425 °C to 700 °C.
The LGP range is often customised in order to precisely meet the user's requirements.
Typical examples of which are the more sophisticated control systems and data recording that is required for applications such as AMS 2750F heat treatment under Nadcap, or modifications to handle heavier loads or assist in loading and unloading the oven, or simply larger chamber sizes than are offered in the standard range.
Standard features
- 425°C, 625°C or 700°C maximum operating temperatures
- 500 to 13,820 litre chamber volumes
- PID digital set and display using the 3216CC controller
- Over-temperature protection
- Large capacity, rugged well proven designs
- Robust construction, for heavy duty cycles
- Efficient air circulation and excellent temperature uniformity from heavy duty impellers
- Corrosion resistant ferritic grade 430 stainless steel interior
- Steel section & zinc coated, painted mild steel exterior
- Single & double door models
- Shelf runners on models up to 1000 litres (optional on models up to 5830 litres)
- Low thermal mass insulation for high energy efficiency
- Fully adjustable chamber ventilation
- Ethernet communications
Options (specify these at time of order)
- A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available - more information about controllers
- Bespoke specifications are available for AMS2750F (Nadcap) compliant applications
- Access ports for cables & pipes
- Exhaust proving switch
- Manual or motorised vertically opening doors
- Vertical airflow impellers
- Explosion relief panels
- Interior light (subject to temperature limitations)
- Standard or heavy duty shelves
- A wide range of sample loading & handling accessories can also be supplied

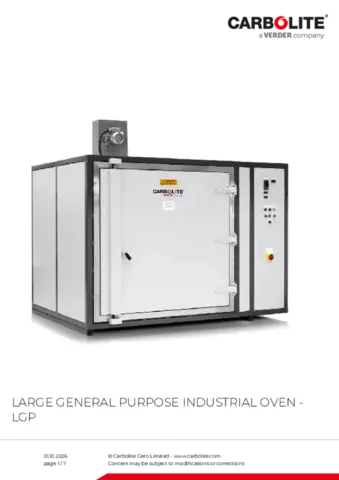

Large General Purpose Industrial Oven - LGP Technical Data
| Max temp (°C) | Min temp (°C) | Temp stability (°C) | Temp uniformity (°C) | Heat-up time (mins) | Dimensions: Internal H x W x D (mm) | Dimensions: External H x W x D (mm) | Doors | Shelves fitted / accepted | Shelf loading each / total (kg) | Volume (litres) | Weight (kg) | Max power (W) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LGP 4/500 | 425 | Ambient +35 | ±0.5 | ±5.0 @250°C | 60 | 800 x 800 x 800 | 1450 x 1820 x 1520 | Single door | 0 / 4 (shelf runners supplied - shelves available at extra cost) | 50 / 200 | 500 | -- | 9000 |
| LGP 4/1000 | 425 | Ambient +35 | ±0.5 | ±5.0 @250°C | 60 | 1000 x 1000 x 1000 | 1650 x 2020 x 1720 | Single door | 0 / 4 (shelf runners supplied - shelves available at extra cost) | 50 / 200 | 1000 | -- | 18000 |
| LGP 4/1750 | 425 | Ambient +35 | ±0.5 | ±5.0 @250°C | 60 | 1200 x 1200 x 1200 | 1850 x 2820 x 1920 | Single door | 0 / 5 (shelf runners and shelves available at extra cost) | 50 / 250 | 1750 | -- | 24000 |
| LGP 6/500 | 625 | Ambient +35 | ±0.5 | ±5.0 @250°C | 75 | 800 x 800 x 800 | 1450 x 1820 x 1520 | Single door | 0 / 4 (shelf runners supplied - shelves available at extra cost) | 50 / 200 | 500 | -- | 13500 |
| LGP 6/1000 | 625 | Ambient +35 | ±0.5 | ±5.0 @250°C | 75 | 1000 x 1000 x 1000 | 1650 x 2020 x 1720 | Single door | 0 / 4 (shelf runners supplied - shelves available at extra cost) | 50 / 200 | 1000 | -- | 24000 |
| LGP 6/1750 | 625 | Ambient +35 | ±0.5 | ±5.0 @250°C | 75 | 1200 x 1200 x 1200 | 1850 x 2820 x 1920 | Single door | 0 / 5 (shelf runners and shelves available at extra cost) | 50 / 250 | 1750 | -- | 36000 |
