Advanced Loading Concepts

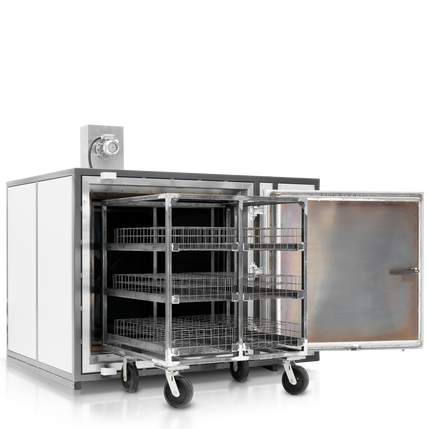

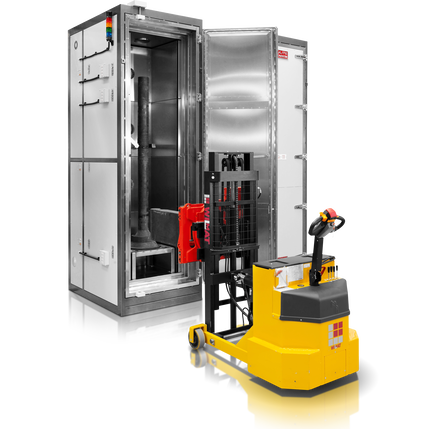

On most oven and furnace models, for fast and convenient loading and unloading Carbolite offers loading trays and trolleys to meet customer specifications. Fork lifts are also available for heavy loads.

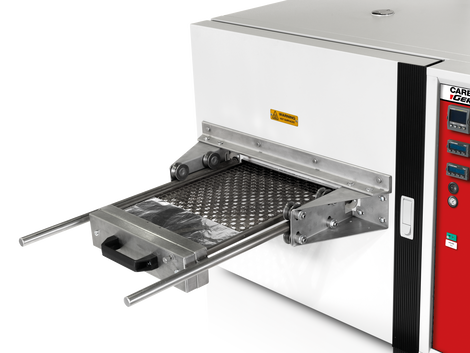

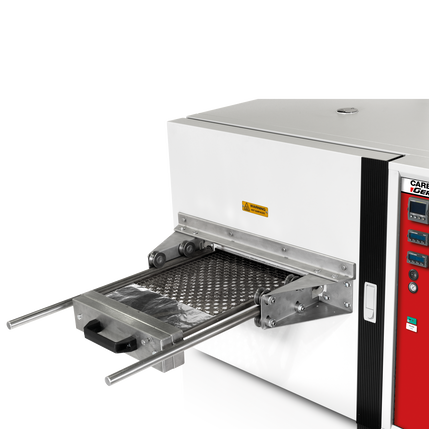

To minimise the recovery time, special loading systems such as sliding trays for ovens up to 600°C can be used to insert the sample quickly into the preheated chamber of the oven without the need to open the door.

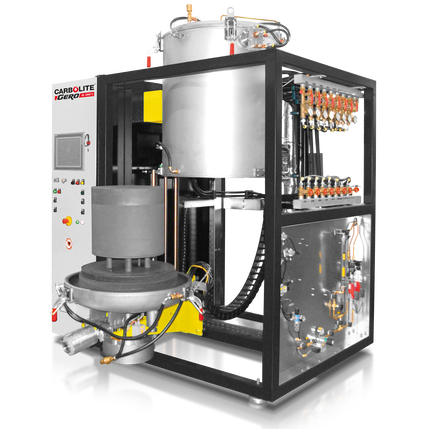

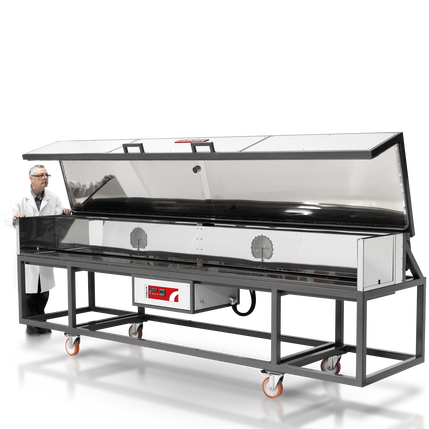

For almost all temperature ranges up to 3000°C various ovens and furnaces with top, bottom or front loading access to the oven or furnace chamber are available. Based on these standard models further modifications can be made to meet customer requirements.

Industrial applications often require heavy loads for lean and cost efficient production. In most Carbolite ovens and furnaces larger sample weights can be loaded by increasing the strength of the hearth or sidewalls. For ovens up to 600°C a standard range of heavy load options is available.

For ovens and furnaces combining automated loading or unloading mechanism Carbolite offers motorised doors and opening mechanisms. The motorised doors can either be pneumatic or electrically driven. Activation of the doors may be either by a button on the control panel or a foot pedal.
