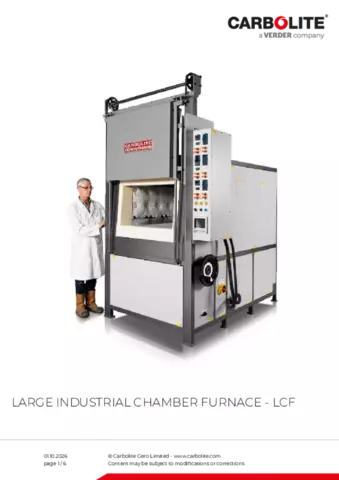

Large Industrial Chamber Furnace - LCF

The robust construction of LCF industrial chamber furnaces makes them ideal for applications such as the heat treatment of steels and alloy, ceramics sintering and aerospace heat treatment.

The LCF industrial furnace range is often customised in order to precisely meet the user’s requirements. This range also provides a foundation upon which a wide range of custom modifications can be added. Typical examples of which are the more sophisticated control systems and data recording that is required for applications such as AMS 2750F heat treatment under Nadcap. Solutions are available to handle heavier loads or assist in loading and unloading the furnace, or larger chamber sizes than are offered in the standard range.

• 1200°C & 1400°C maximum temperatures
• Programmable EPC3016P1 controller
• Over-temperature protection
• Excellent uniformity and control
• Robust construction using hollow steel section & zinc coated steel sheet
• Double skin construction ensures safe outer case temperature
• Manually operated vertically opening door keeps the hot face away from the operator
• Low thermal mass insulation for high energy efficiency
• Hard wearing silicon carbide tiled hearth
• 1200°C range heated by heavy gauge wire elements in roof and below the hearth
• 1400°C range heated by high quality silicon carbide elements in roof and below the hearth
• Safety door interlock isolates power from the elements whenever the door is opened
• Ethernet communications

• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available - more information about controllers
• Pneumatically or electrically operated doors
• A range of retorts can be supplied for using modified with atmospheres up to 1000°C
• Remote control module
• Bespoke specifications are available for AMS2750F (Nadcap) compliant applications
