The AAF ashing furnace range is designed specifically to provide optimum ashing conditions to ensure complete combustion of the sample.
The AAF 11/3 & AAF 11/7 ashing furnaces provide a continuous flow of preheated air through the chamber, and are designed to comply with ISO 1171:2010, ASTM D3174-04: 2010 and ASTM D4422.
Standard features
- 1100 °C maximum operating temperatures
- Programmable EPC3016P1 controller
- Ideal for ashing foods, plastics, coal & other hydrocarbon materials
- Designed to comply with ISO 1171:2010, ASTM D3174-04:2010 and ASTM D4422
- Wire elements are protected from chemical & mechanical damage by a hard wearing alumina based liner
- 4 sided heating (2 sides, roof & hearth)
- Air inlet & tall chimney give airflow of 4 to 5 changes per minute
- Low chamber height holds airflow close to samples for optimum combustion
- Powerful elements with graded winding compensate for heat loss due to high airflow
- Preheating of air before it enters the chamber gives excellent uniformity
- Sample tray and loading handle
- Soft closing door protects the thermal insulation
Options (specify these at time of order)
- A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available - more information about controllers
- Over-temperature protection (recommended to protect valuable contents & for unattended operation)
- 2 phase electrical supply for AAF 11/7
Ashing Furnace AAF - 3 & 7 litres Examples

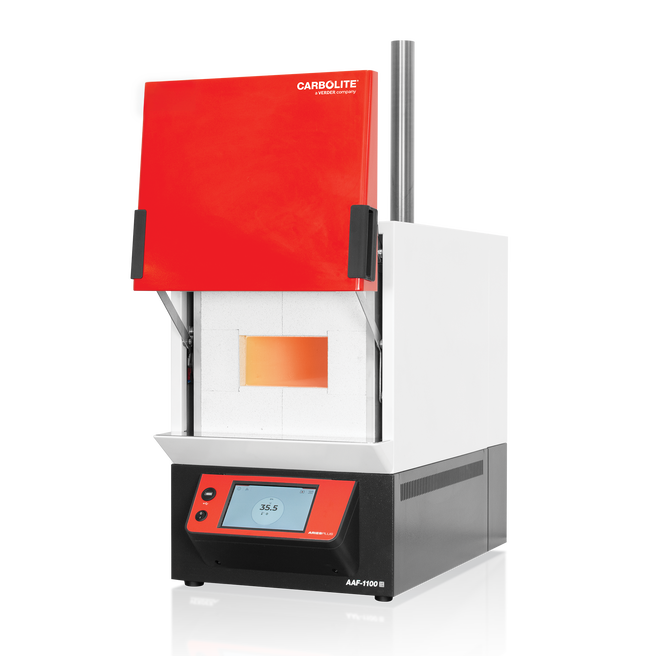

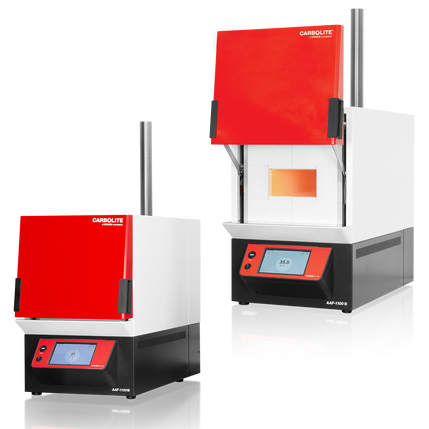

AAF 11/7

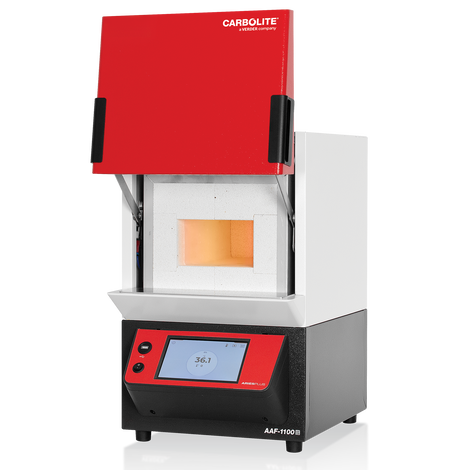

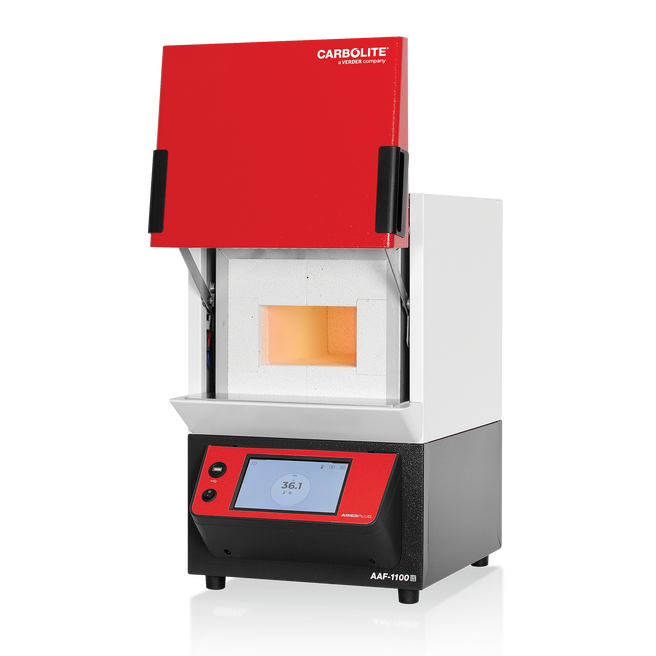

AAF 11/3
Ashing Furnace AAF - 3 & 7 litres Technical Data
| Max temp (°C) | Heat-up time (mins) | Max continuous operating temp (°C) | Dimensions: Internal H x W x D (mm) | Dimensions: External H x W x D (mm) | Dimensions: External with door open H x W x D (mm) | Dimensions: Height to top chimney (mm) | Volume (litres) | Max power (W) | Holding power (W) | Thermocouple type | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AAF 11/3 | 1100 | 155 | 1000 | 90 x 150 x 250 | 595 x 375 x 495 | 810 x 375 x 540 | 790 | 3 | 2100 | 1270 | K | 22 |
| AAF 11/7 | 1100 | 155 | 1000 | 90 x 170 x 455 | 670 x 435 x 750 | 915 x 435 x 805 | 1070 | 7 | 4000 | 2624 | K | 63 |
